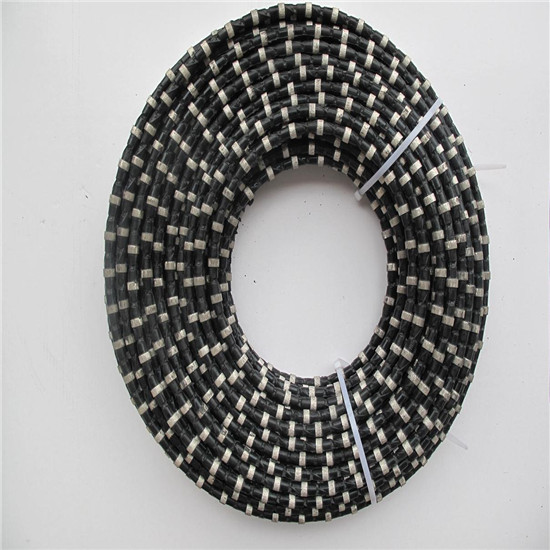

Diamond Wire Saw For Granite Block Squaring
|
Application |
1.For Stone Quarry,Block Squaring&Chamfering,Profiling Cutting
2.For Cutting Reinforce Concrete |
|
Diameter Of Wire Saw |
7.2mm, 8.0mm, 8.5mm,9.0mm,11.0mm,11.5mm |
|
Technology |
Sintered,Electroplated,Vaccum Brazed |
|
Coating Fix Injection |
Plastic,Rubber,Spring,Rubber+Spring,Plastic+Spring |
|
Beads/Meter |
40/37/33/28/26pcs |
|
Attention |
l. Checking the saw regularly and adjust timely.
2.Checking the pearl abrade regularly,Avoid the eccentric wear |
|
Feature |
1.Very less breakage ratio when using therefore increase the working lifetime.
2.Automatic production ensures stable quality performance. 3.Safe, high efficiency and environment protecting. |
|
Diameter(mm) |
Applications |
Coating |
Bead/m |
Cutting Speed(m2/h) |
Wire Life(m2/m) |
|
Φ11.5/Φ10.5 |
Reinforced concrete |
rubber+spring |
40 |
0.5-5 |
0.5-8 |
|
Φ11.5/Φ11.0 |
Granite mine/quarry |
rubber/rubber+spring |
40 |
2-12 |
7-22 |
|
Φ11.5/Φ11.0/Φ10.5 |
Marble mine/quarry |
spring/spring+plastic |
28-40 |
4-20 |
15-50 |
|
Φ11.0/10.5 |
Granite & marble block |
plastic/rubber |
37/40 |
6-30 |
7-50 |
|
Φ8.8/Φ8.5 |
Granite&marble profiling |
plastic/rubber |
33/37/40 |
7-30 |
7-40 |
|
Φ7.2/Φ8.5 |
Granite slab |
plastic |
37 |
0.5-1.6 |
6-15 |
1.Diamond Wire Saw For Quarry:
We recommend rubber wire,it can protect the wire saw rope very well and increase the wire’s strength.
The rubber has good temperature resistance, and it can be used when water is not enough.
Strong flexibility can reduce the cut-in-one-side problem.
2.Diamond Wire Saw For Block Dressing:
We recommend plastic wire,it can be used to dissect marble granite.
It can cut accurately with small inter-space.
It can cut the block with the thickness of 2.3M
3.Diamond Wire Saw For Profiling :
We recommend plastic wire for shaping operations provides a huge range of possibilities
It makes smooth surface, and accurate sizes with small inter-space.
Columns and elements for the building industry can be produced in much more economic way.
4.Diamond Wire Saw For Reinforce Concrete Cutting:
We recommend 10.5/11.5mm Rubber and Spring wire.
The wires are widely used in the reinforced concrete with more than 5% steel inside.
Used in the building constructions, cutting for houses,bridges,cement pipes and under waster buildings.
5.Diamond Multi-Wire Saw For Slab Cutting:
Diamond multi-cutting wire saws are suitable for cutting the different kinds of large granite slabs
Remark :modern gang saw can produce in a month 3000 to 4000 square meters of slabs of 2cm thickness
The multi-wire can produce 5000 to 6000 square meters of slabs cut at any thickness between 1 to 5 cm
