Product Name:
Sintered Diamond CNC Finger Bit For Milling Granite Wash Basins
No. :
BVFB-004
:
:

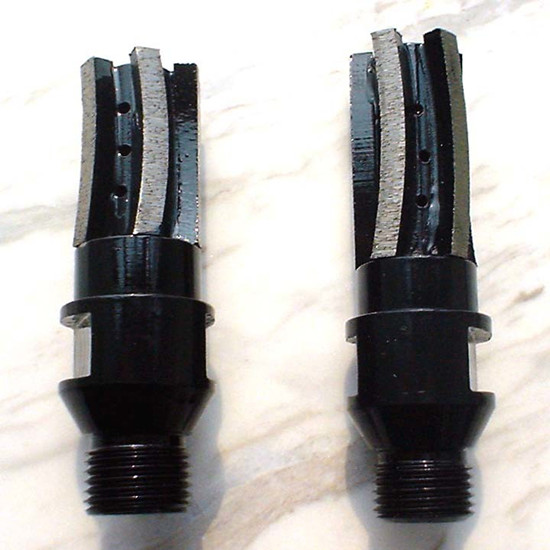

Sintered Diamond CNC Finger Bit For Milling Granite Wash Basins

Product Introduction

Our diamond bit is designed for granite & marble slabs trimming, drilling and milling.

Due to the special shape of the diamond bit, there should be less blow out on the bottom of the stone. The diamond portion of the bit is tapered so it becomes smaller towards the tip.

Features:

1.The unique design of our diamond bit allows better cooling and easy dust removal, good sharpness and long life.

2.Wet use only. Center waterfeed holes in each bit.

3.Connection: GAS1/2" for CNC machines.

4.To be equipped with CNC Machine.

Specification

Diamond finger bit for granite

The following are some normal specifications of our diamond finger bit for granite.

Application

Diameter

Segment Length (mm)

Thread

Granite



Marble

25mm(1")

30

Gas 1/2"

 35

 40

 45

 50

We can also supply some other specifications upon clients' requests.
