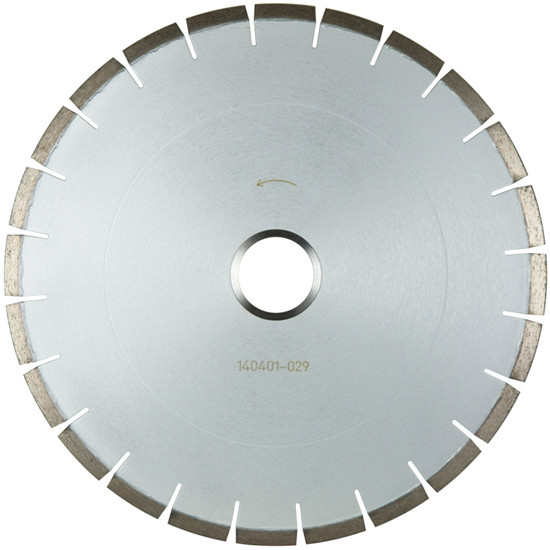

Diamond Saw Blades For Granite
High Frequency Welded,Wet Use .
Normal Flat Segments, Length 40mm, height 10-15mm.
Easy and smooth cutting for Hard, Medium Hard, Soft Granite without chips or with very less Chips, Long life and stable performance
Specification just for your reference ,any size would be order by our customers.
| Outer Diameter | Hole | Demension of teeth | Number of teeth | ||
| Inch | mm | mm | Segment Length(mm) | Segment Height(mm) | |
| 10" | 250mm | 50/60 | 40 | 10/12/15mm | 18 |
| 12" | 300mm | 50/60 | 40 | 10/12/15mm | 21 |
| 14" | 350mm | 50/60 | 40 | 10/12/15mm | 24 |
| 16" | 400mm | 50/60 | 40 | 10/12/15mm | 28 |
| 18" | 450mm | 50/60 | 40 | 10/12/15mm | 32 |
| 20" | 500mm | 50/60 | 40 | 10/12/15mm | 36 |
| 24" | 600mm | 50/60 | 40 | 10/12/15mm | 42 |
| 26" | 650mm | 50/60 | 40 | 10/12/15mm | 46 |
| 28" | 700mm | 50/60 | 40 | 10/12/15mm | 50 |
| 30" | 750mm | 50/60 | 40 | 10/12/15mm | 54 |
| 32" | 800mm | 50/60 | 24 | 10/12/15mm | 57 |
