Product Name:
Diamond Saw Blades For Granite
No. :
BVSB-001
:
:

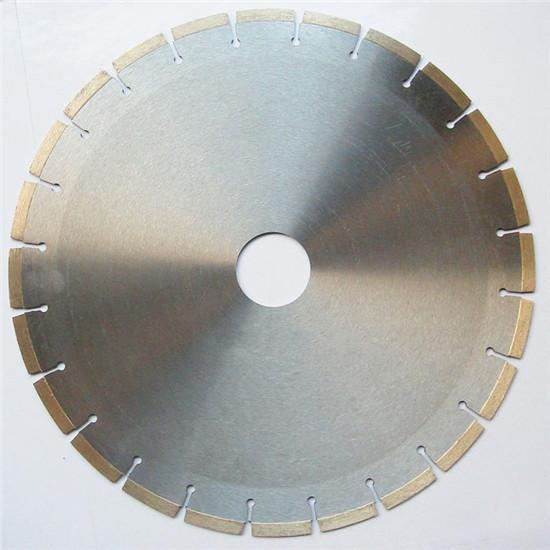

Diamond Saw Blades For Granite

High  Frequency  Welded,Wet Use .

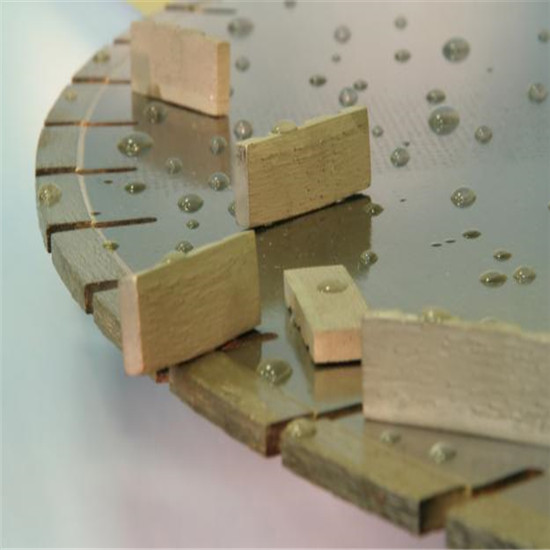

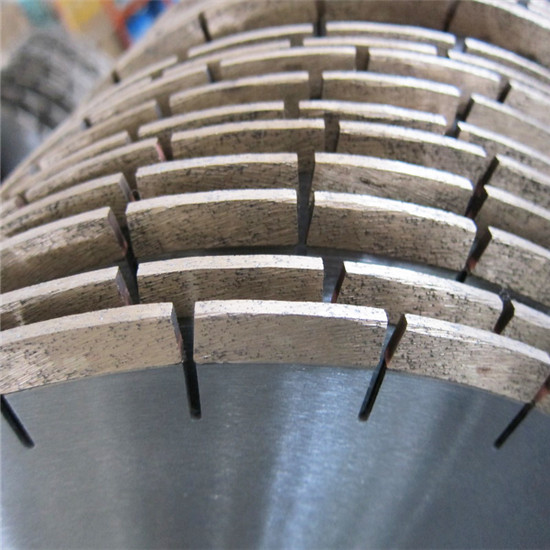

Normal Flat Segments, Length 40mm, height 10-15mm.



Easy and smooth cutting for Hard, Medium Hard, Soft Granite without chips or with very less Chips, Long life and stable performance

Specification just for your reference ,any size would be order by our customers.



Outer Diameter  Hole Demension of teeth Number of teeth
Inch mm mm  Segment Length(mm)  Segment Height(mm)
10" 250mm 50/60 40 10/12/15mm 18
12" 300mm 50/60 40 10/12/15mm 21
14" 350mm 50/60 40 10/12/15mm 24
16" 400mm 50/60 40 10/12/15mm 28
18" 450mm 50/60 40 10/12/15mm 32
20" 500mm 50/60 40 10/12/15mm 36
24" 600mm 50/60 40 10/12/15mm 42
26" 650mm 50/60 40 10/12/15mm 46
28" 700mm 50/60 40 10/12/15mm 50
30" 750mm 50/60 40 10/12/15mm 54
32" 800mm 50/60 24 10/12/15mm 57
